AI Home Project

Overview

The AI Home Project is a smart home automation system designed to control 50 relays using an Arduino Mega and an ESP-01 module. The system utilizes JSON data transmitted via serial communication to manage various appliances connected to the relays.

Components

Arduino Mega, ESP-01 Module, 50 Relays, EEPROM

Connections

Relays: Connected to Arduino pins 22 through 71. ESP-01 Connections: RX -> Arduino Mega TX1 (pin 18), TX -> Arduino Mega RX1 (pin 19)

Key Points

• Relay Control: The system controls 50 relays based on data received from the ESP-01.
• EEPROM Usage: The state of each relay is stored in EEPROM, allowing the system to remember the last state of each relay even after a power cycle.
• Active LOW Relays: The relays are assumed to be active LOW, meaning they turn on when the pin is set to LOW.
• Serial Communication: The ESP-01 module communicates with the Arduino Mega via the Serial1 interface, sending JSON formatted data to control the relays.

Latest Update

Date: June 16, 2024

AI Home Project Update: Enhanced Relay Control and System Stability

The latest update to the AI Home Project introduces improved relay control mechanisms and increased system stability. Users can now enjoy more reliable home automation with enhanced performance and better data retention across power cycles.

New Textview Release

Experience the upgraded textview feature that provides clearer status updates and more intuitive control over your home automation system. This enhancement ensures seamless interaction and a better user experience.

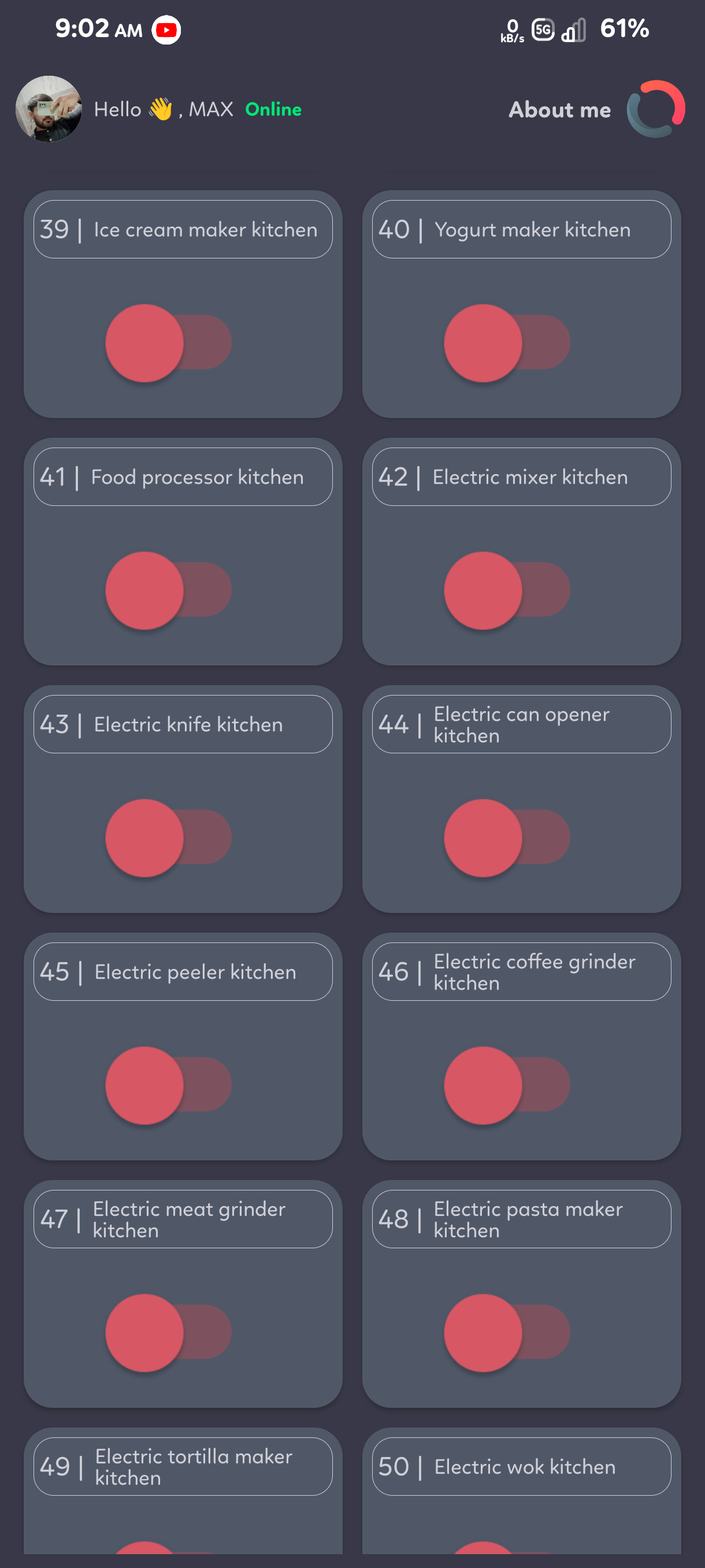

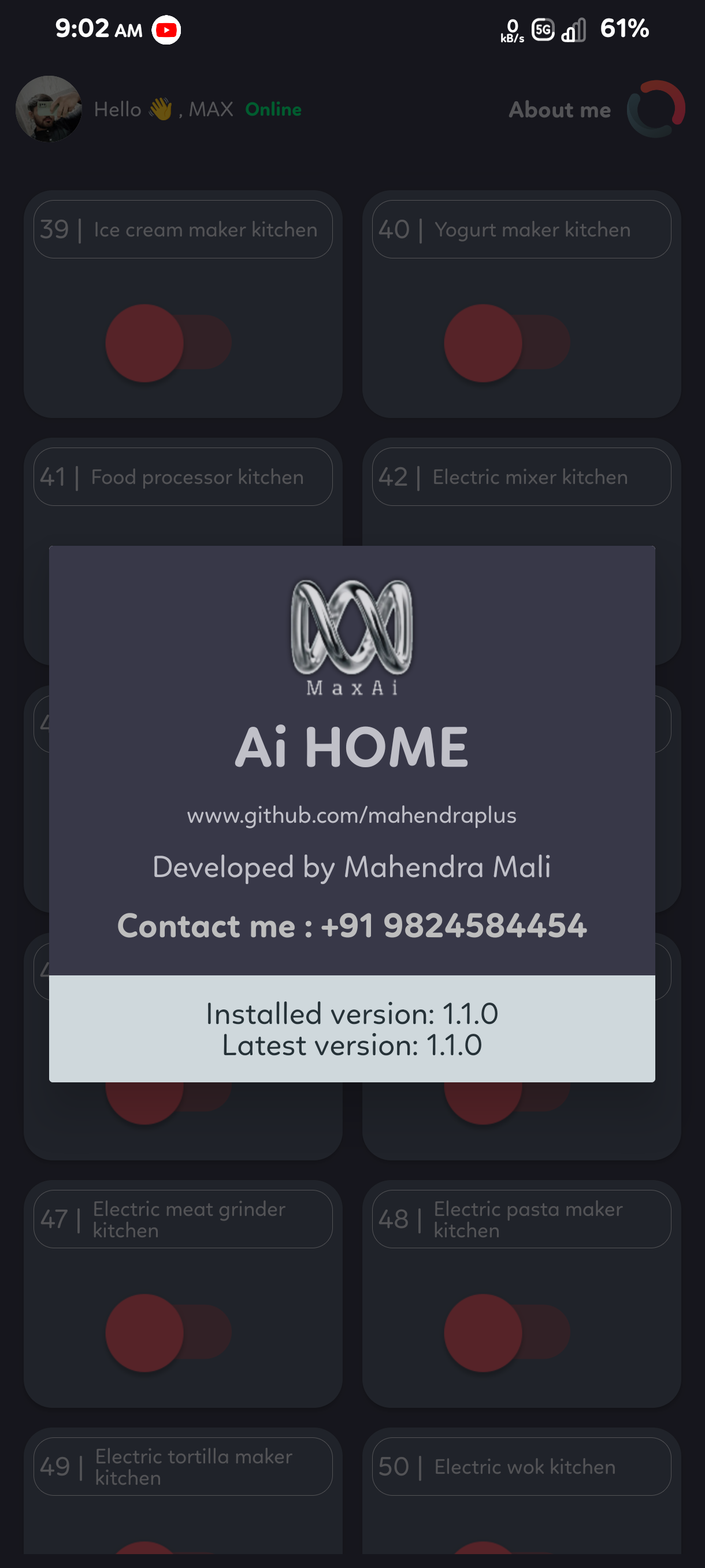

AI Home Android Application: Version 1.1.0 Release

The AI Home Android application version 1.1.0 introduces the ability to control up to 50 relays, with real-time notifications when switches are turned on.
